Loop Skeleton

../_images/loop_skeleton.png

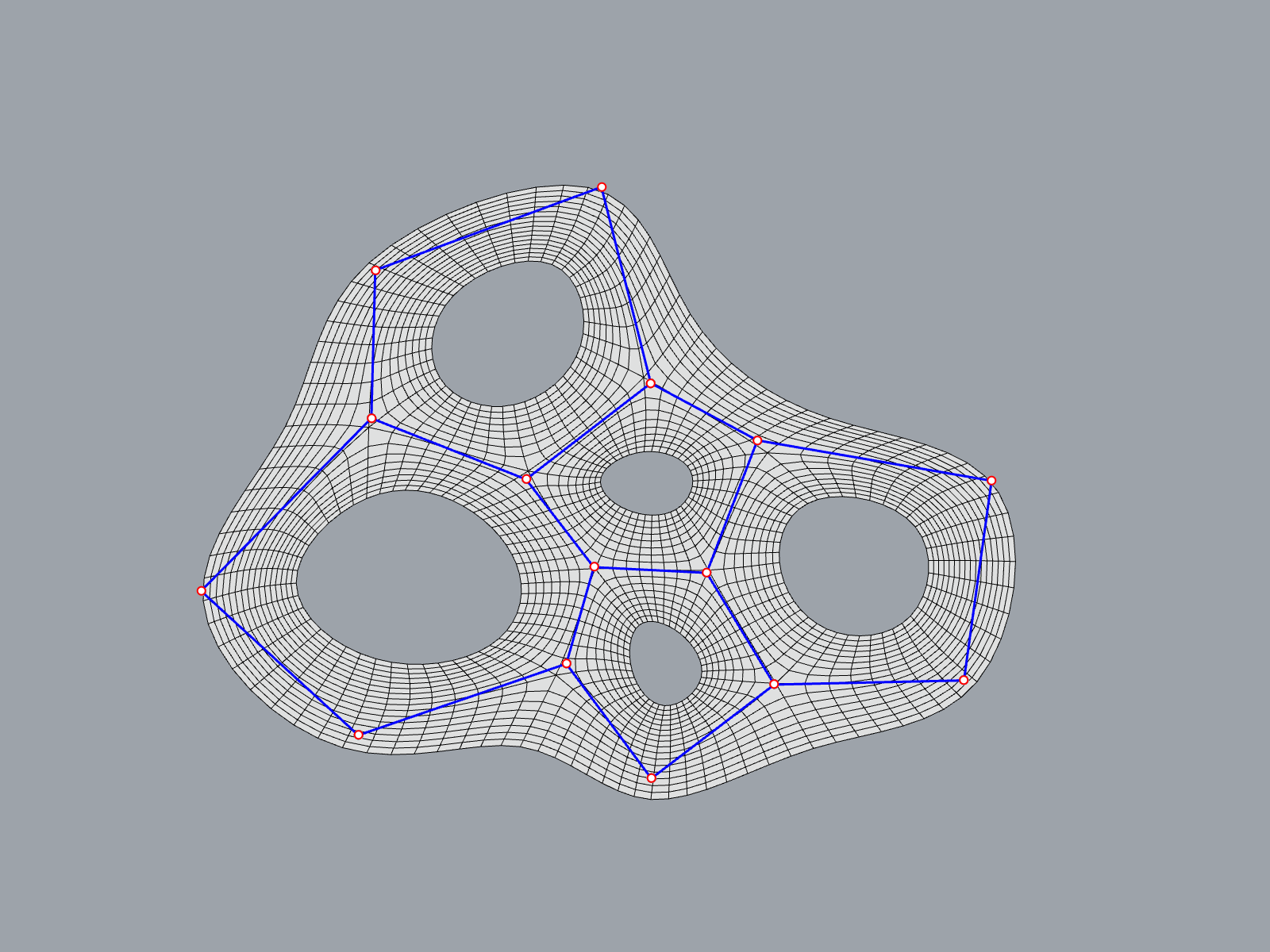

This example showcases the way to create a Skeleton from a set of lines and with interactive input. From the exported json file, the skeleon can be accessed and edited again.

from compas_skeleton.datastructure import Skeleton
from compas_skeleton.rhino import SkeletonObject
import compas_rhino
import os

guids = compas_rhino.select_lines()
lines = compas_rhino.get_line_coordinates(guids)
compas_rhino.rs.HideObjects(guids)

skeleton = Skeleton.from_skeleton_lines(lines)
skeletonobject.draw()
skeletonobject.dynamic_draw_widths()

HERE = os.path.dirname(__file__)
FILE = os.path.join(HERE, 'skeleton.json')
skeletonobject.datastructure.to_json(FILE, pretty=True)
