Branch Skeleton 3D

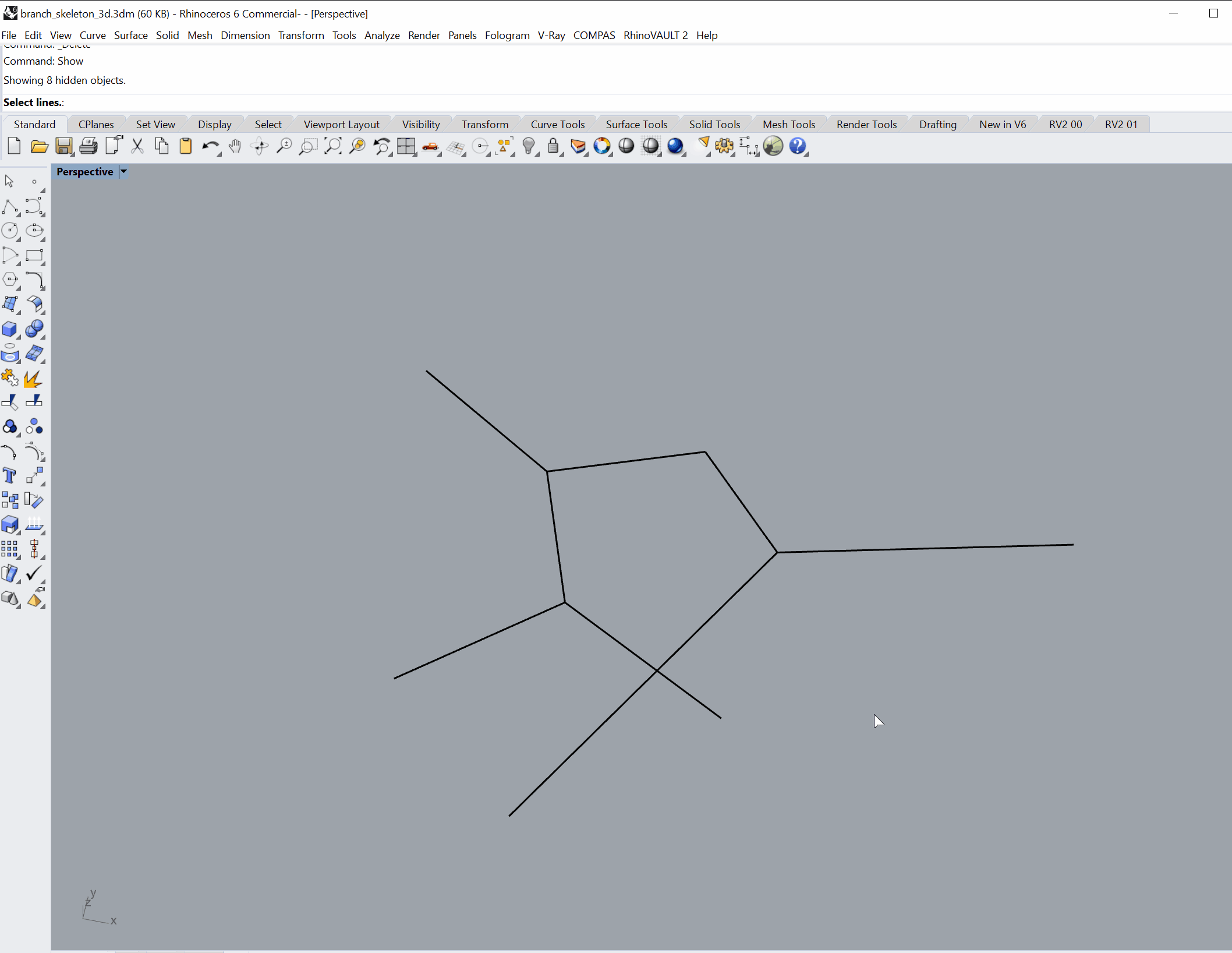

This example showcases the way to create a Skeleton from a set of lines and with interactive input.
from compas_skeleton.datastructure import Skeleton
from compas_skeleton.rhino import SkeletonObject
import compas_rhino
guids = compas_rhino.select_lines() # select lines from Rhino
lines = compas_rhino.get_line_coordinates(guids)
compas_rhino.rs.HideObjects(guids)
skeleton = Skeleton.from_skeleton_lines(lines)
skeletonobject.draw() # it draws the mesh with default width values
skeletonobject.dynamic_draw_widths() # move mouse cursor to change width values
skeletonobject.update()
# type command 'm_skeleton' to move those skeleton joint vertices up
# tips: hold ctl and click on the vertex to move it vertically
# type command 'subdivide' to increase subdivision level of high-poly skeleton mesh
# type command 'finish' to exit update mode
