Updating the form diagram

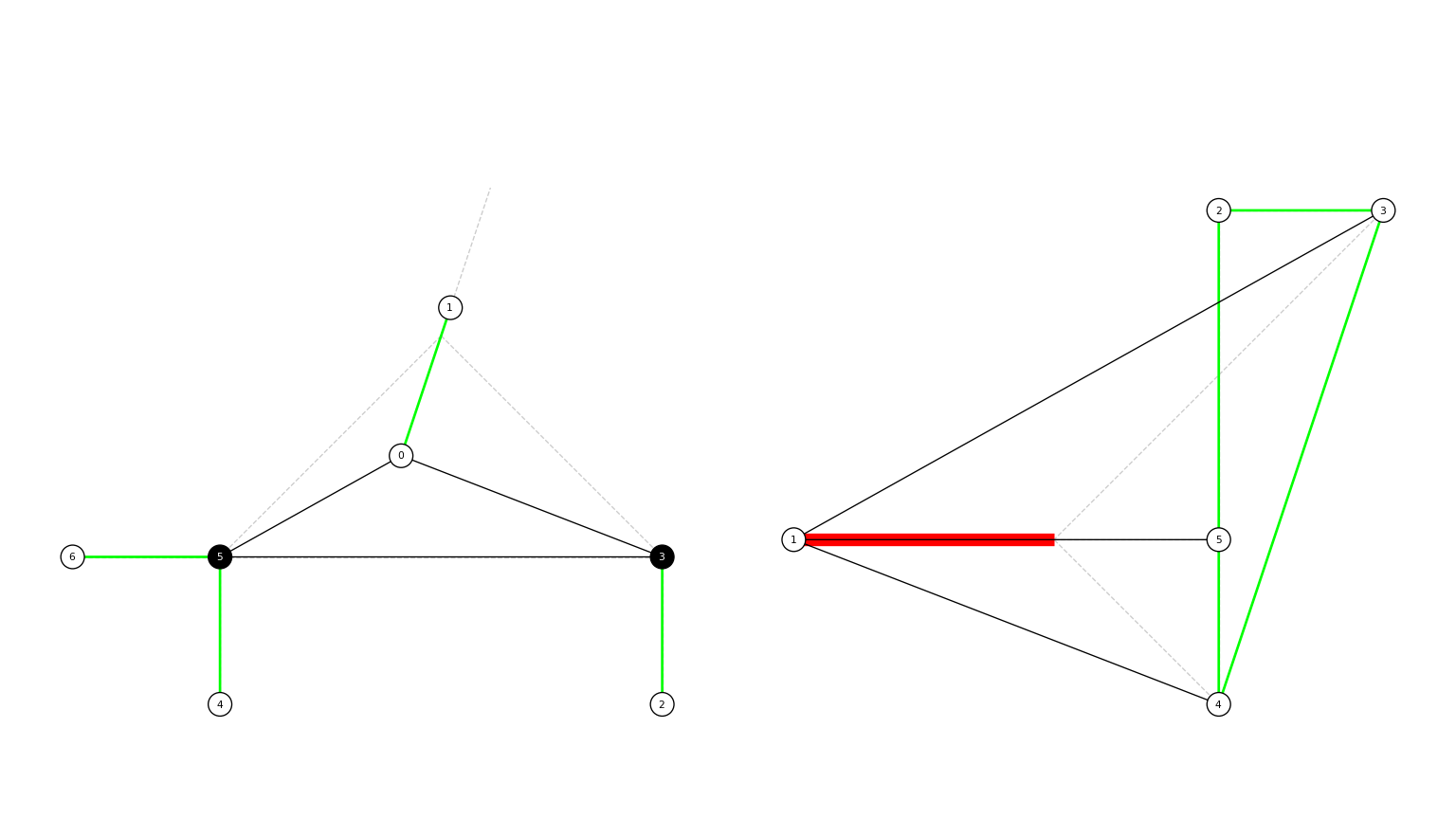

../_images/example_rtl.png
import compas_ags

from compas_ags.diagrams import FormGraph
from compas_ags.diagrams import FormDiagram
from compas_ags.diagrams import ForceDiagram
from compas_ags.ags import graphstatics

from compas_ags.viewers import Viewer

# ==============================================================================
# Construct the graph of a single panel truss,
# including loads and reaction forces.
# ==============================================================================

graph = FormGraph.from_obj(compas_ags.get("paper/gs_form_force.obj"))

form = FormDiagram.from_graph(graph)
force = ForceDiagram.from_formdiagram(form)

# ==============================================================================
# Fix the left and right supports.
# ==============================================================================

left = next(form.vertices_where({"x": 0.0, "y": 0.0}))
right = next(form.vertices_where({"x": 6.0, "y": 0.0}))
fixed = [left, right]

form.vertices_attribute("is_fixed", True, keys=fixed)

# ==============================================================================
# Set the magnitude of the load.
# ==============================================================================

form.edge_force(1, -10.0)

# ==============================================================================
# Update the force densities in the form diagram.
# ==============================================================================

graphstatics.form_update_q_from_qind(form)

# ==============================================================================
# Update the geometry of the force diagram.
# ==============================================================================

graphstatics.force_update_from_form(force, form)

# ==============================================================================
# Store the original geometries.
# ==============================================================================

force_key_xyz = {key: force.vertex_coordinates(key) for key in force.vertices()}

form_lines = []
for u, v in form.edges():
    form_lines.append(
        {
            "start": form.vertex_coordinates(u, "xy"),
            "end": form.vertex_coordinates(v, "xy"),
            "width": 1.0,
            "color": "#cccccc",
            "style": "--",
        }
    )

force_lines = []
for u, v in force.edges():
    force_lines.append(
        {
            "start": force.vertex_coordinates(u, "xy"),
            "end": force.vertex_coordinates(v, "xy"),
            "width": 1.0,
            "color": "#cccccc",
            "style": "--",
        }
    )

# ==============================================================================
# Change the position of the "free" node of the force diagram
# ==============================================================================

force.vertex[4]["x"] -= 8.0

# ==============================================================================
# Update the form diagram accordingly.
# ==============================================================================

graphstatics.form_update_from_force(form, force, kmax=100)

# ==============================================================================
# Indicate the movement of the free node in the force diagram with an arrow.
# ==============================================================================

force_lines.append(
    {
        "start": force_key_xyz[4],
        "end": force.vertex_coordinates(4),
        "color": "#ff0000",
        "width": 10.0,
        "style": "-",
    }
)

# ==============================================================================
# Visualize the result.
# ==============================================================================

viewer = Viewer(form, force, delay_setup=False, figsize=(12, 7.5))

viewer.draw_form(
    lines=form_lines,
    forces_on=False,
    vertexlabel={key: key for key in form.vertices()},
    vertexsize=0.2,
    vertexcolor={key: "#000000" for key in fixed},
    edgelabel={key: index for index, key in enumerate(form.edges())},
)

viewer.draw_force(lines=force_lines, vertexlabel={key: key for key in force.vertices()}, vertexsize=0.2)

viewer.show()
